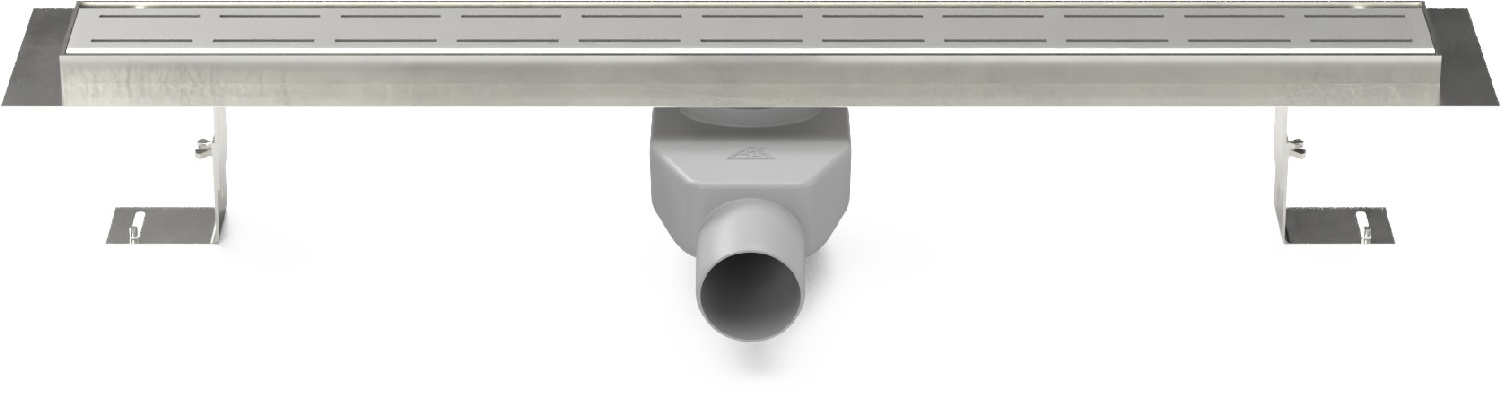

Stainless steel linear floor drain with swivel siphon 650mm Line matte

Stainless steel linear floor drain with swivel siphon 650mm Line matte

Zobrazit v BIM katalogu

Order No.: CH NA 650 L 1

EAN: 8595587439890

Parameters

Length: 650 mm
Width: 65 mm
Frame height: 15 mm
Color: nerez ocel
Color: LINE mat
Material type: nerez, polypropylen
With steel frame: No
Waste connection type: horizontální
Waste connection diameter: 50
Waste connection flowrate: 42-48
Waste connection turnable: Yes
Telescopic legs present: Yes
Load class: K3
Load class for gratings: 300
