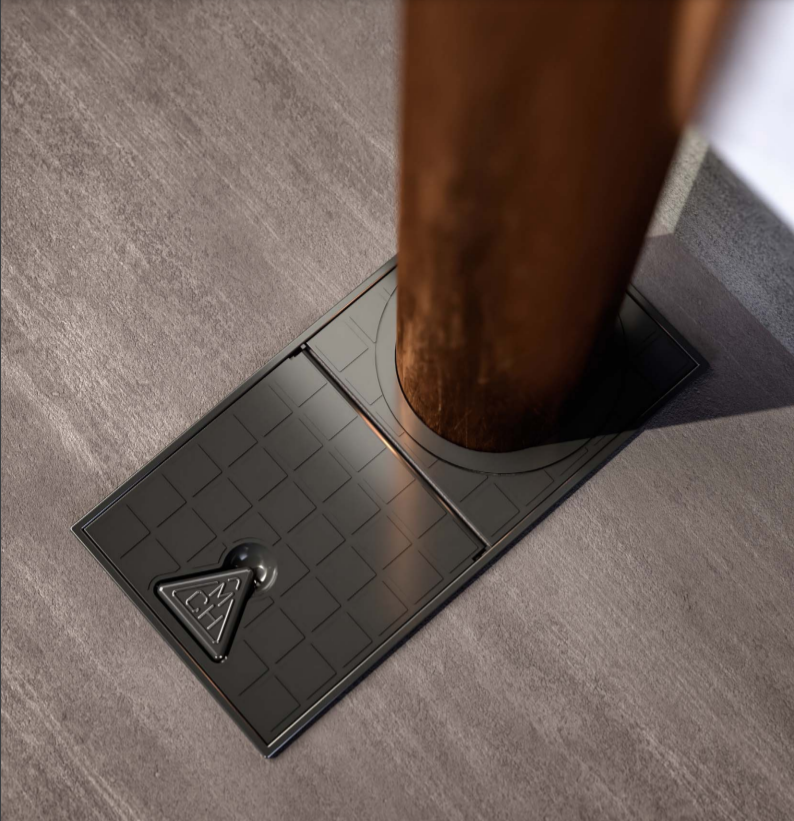

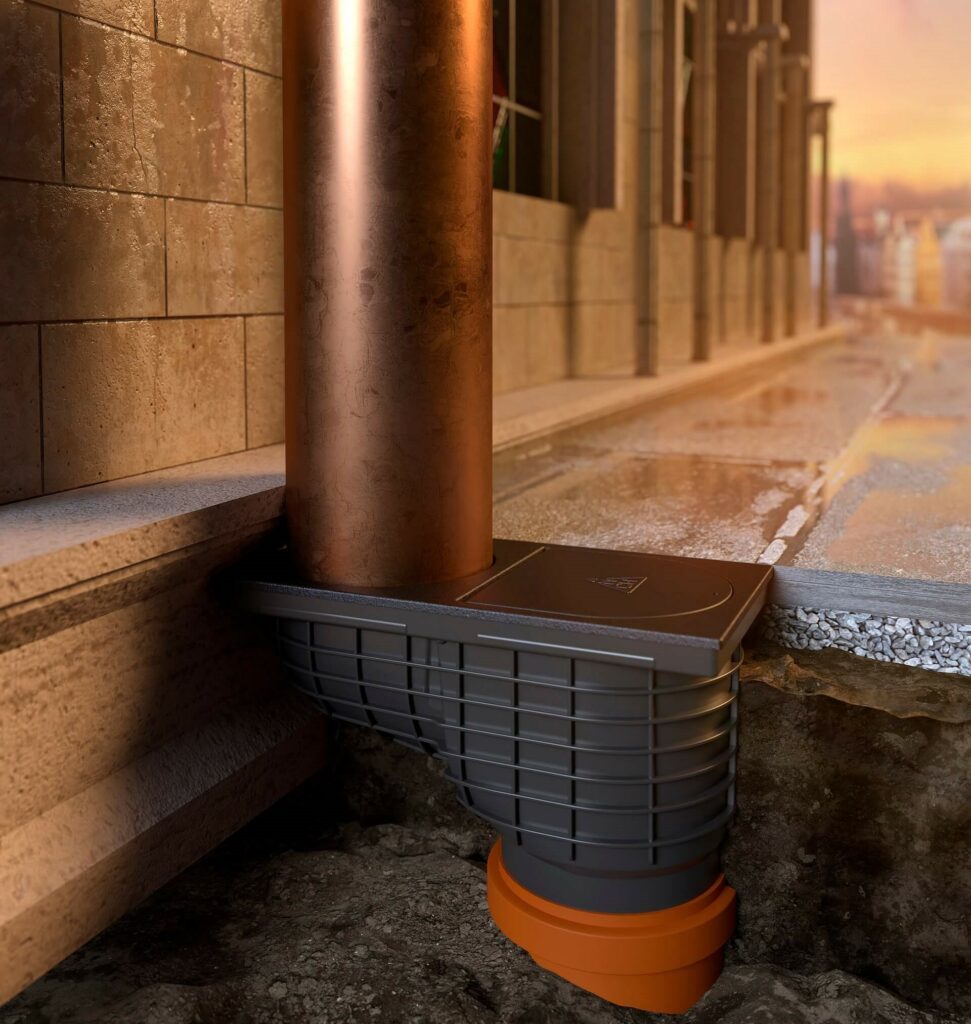

New model large-capacity, plastic roof collector. Produced in two varieties – the first is all plastic and the second is
a combination of plastic with a cast-iron upper surface. The structure of the roof collector is reinforced with ribbing,
which ensures greater strength and stability of the product in the ground. Also included is a dry, anti-odour flap to
prevent backup odours from the sewer pipe. The new hinged-lid system is simpler, in order to give easy access to
the removable filter basket, preventing dirt from spreading. Triple protective partition against seepage, dirt collection basket in plastic or stainless steel – made to order.

Elegance, mystery and sadness – these are the words that are often associated with black colour but with the right combination and placement we can achieve extraordinary and elegant results with a luxurious look.

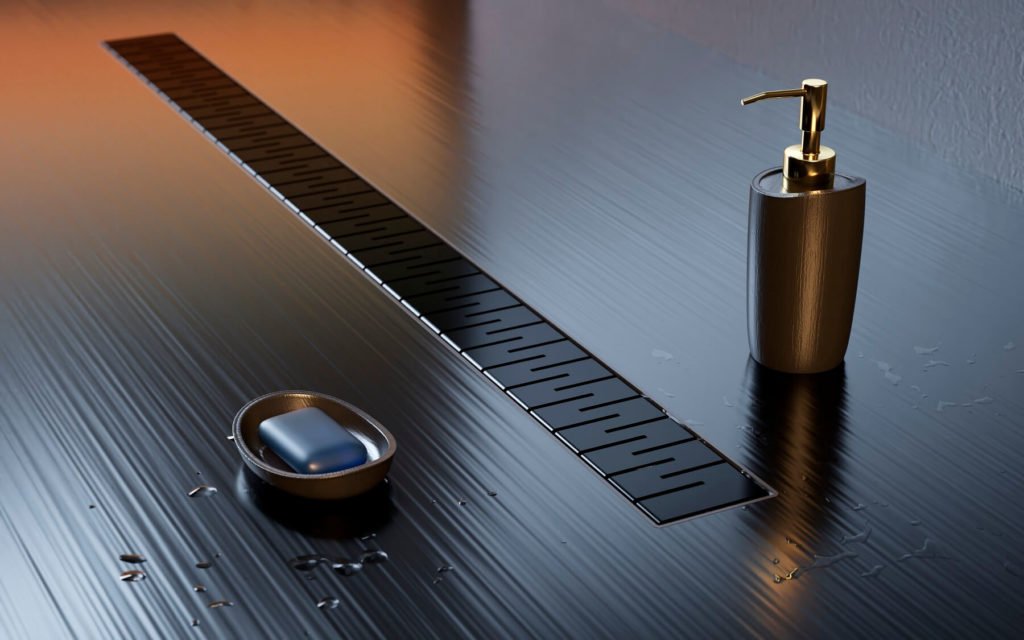

We will bring you an exclusive line of linear floor drains BLACK EDITION.

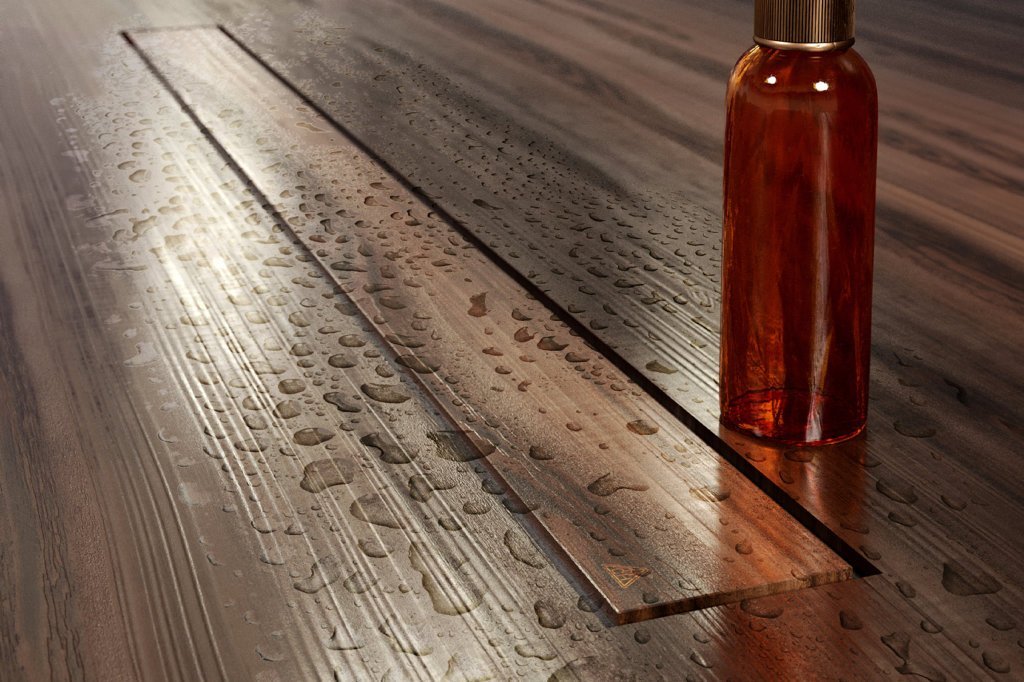

The new AQUARIUS stainless steel (AISI 316) linear floor drain protects your bathroom, thanks to modern technology, from undesirable water leaks. These drains are not welded but pressed, so water does not penetrate through trough drain body.

Part of the drain is a special ALU grid, on which it is possible to stick tiles, glass, marble or stainless steel and thanks to special longitudinal grooves on the upper side of the grid they are tightly fixed.

Floor drains are made of quality materials that resist corrosion and various water temperatures. The products are made in high quality according to European standards, very easy to assemble and clean.

They are designed for a piping system inside buildings that drains wastewater through a sewer connection to the public sewer or directly to the domestic wastewater treatment plant or to the septic tank.

Roof drains are designed for draining rainwater into sewage system or for collecting the dirt being transported by rainwater from the roofs. To serve such purpose, they contain a removable basket with a handle and an anti-odour fl ap, preventing the back fl ow odour and corrosion. The drain grid for square gutter can be ordered as a spare part (p.61).

The draining parts are made from UV stabilized materials that are resistant to corrosion and ambient conditions.

Made of PP and PS, UV stabilized, and from grey cast iron DIN 1691. Load capacity compliant to EN 124-B 125 (12,500 kg) and a plastic grid made from polypropylene compliant to EN 1253 L15 (1,500 kg). Temperature resistance up to 90°C.

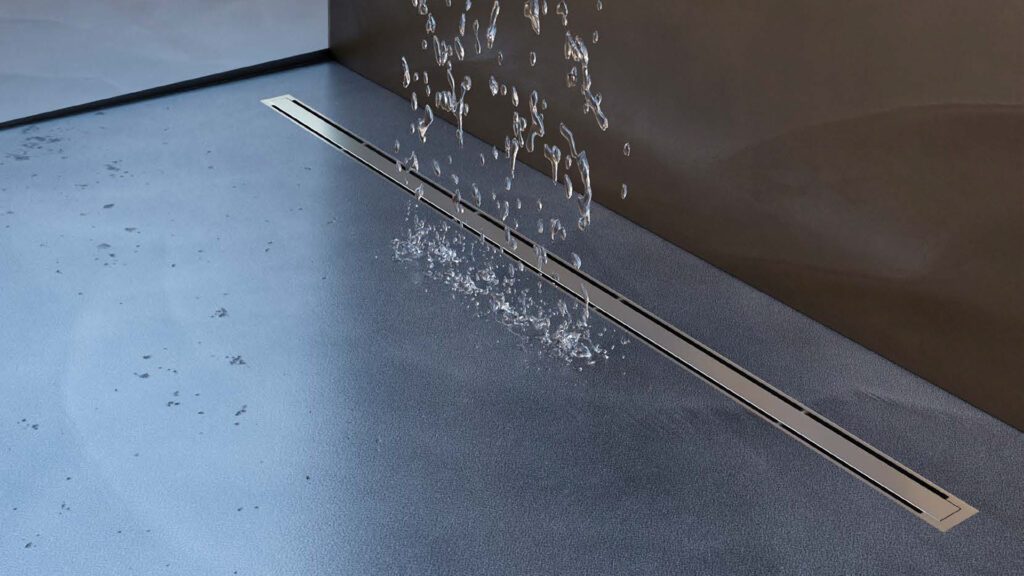

The unobtrusive slim line offers a safe and elegant shower solution. The appearance of the bathroom thus gets a whole new dimension of modern design. The body of the drain is equipped with a rotating anti-odor siphon D50. The frame and grid are made of high quality stainless steel AISI 304. Slim line is an unrivaled product with a thin and elegant body offered in dimensions from 500 to 1200 mm.
