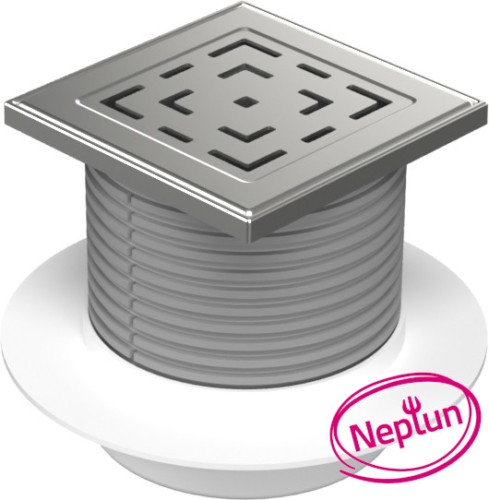

Floor drain with bottom outlet D50, NEPTUN, collar, stainless steel grid LABYRINTH
The floor drain is designed for indoor installations.
If the water level drops, the NEPTUNE float will close the outlet to prevent the back flow of odour from the sewage line.
Made of PP, PS and stainless steel DIN 1.4301.
Load capacity K3 (300 kg).
Temperature esistance up to 70°C.
Folw rate: 27 – 49 l/min
Order No.: L1 420 X L
EAN: 8595587424049

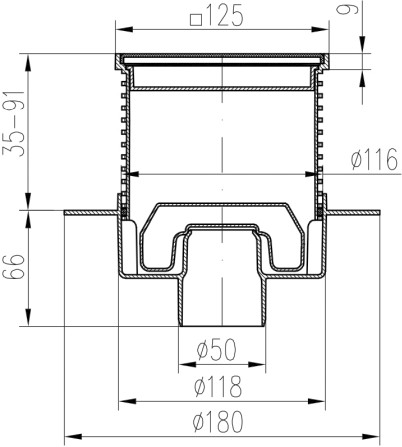

Parameters
- Length
- 180 mm
- Width
- 180 mm
- Height
- 60-130 mm
- Color
- nerez ocel
- Color
- LABYRINTH
- Material type
- nerez, polypropylen, polystyren
- Waste connection type
- vertikální
- Waste connection diameter
- 50
- Waste connection flowrate
- 27-49
- With adjustable height
- Yes
- Load class
- K3
- Load class for gratings
- 300
