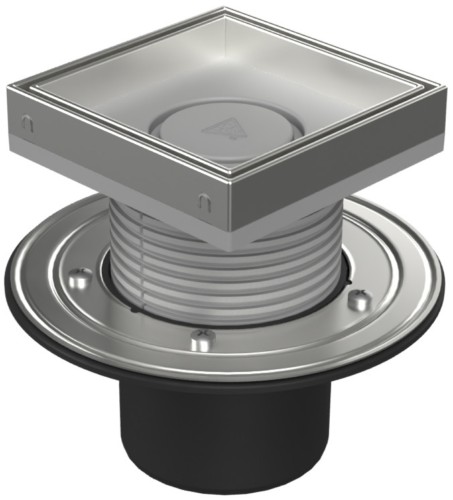

Floor drain with bottom outlet D110, stainless steel flange, frame, grid CERAMICS

Floor drain with bottom outlet D110, stainless steel flange, frame, grid CERAMICS

Zobrazit v BIM katalogu

Order No.: C1 386 B

EAN: 8595587433362

Parameters

Length: 150 mm
Width: 150 mm
Color: CERAMICS
Material type: nerez, polypropylen
With steel frame: Yes
Waste connection type: vertikální
Waste connection diameter: 110
Waste connection flowrate: 32-72
With adjustable height: Yes
Waste connection turnable: Yes
Load class: K3
Load class for gratings: 300
